Taking You to New Heights

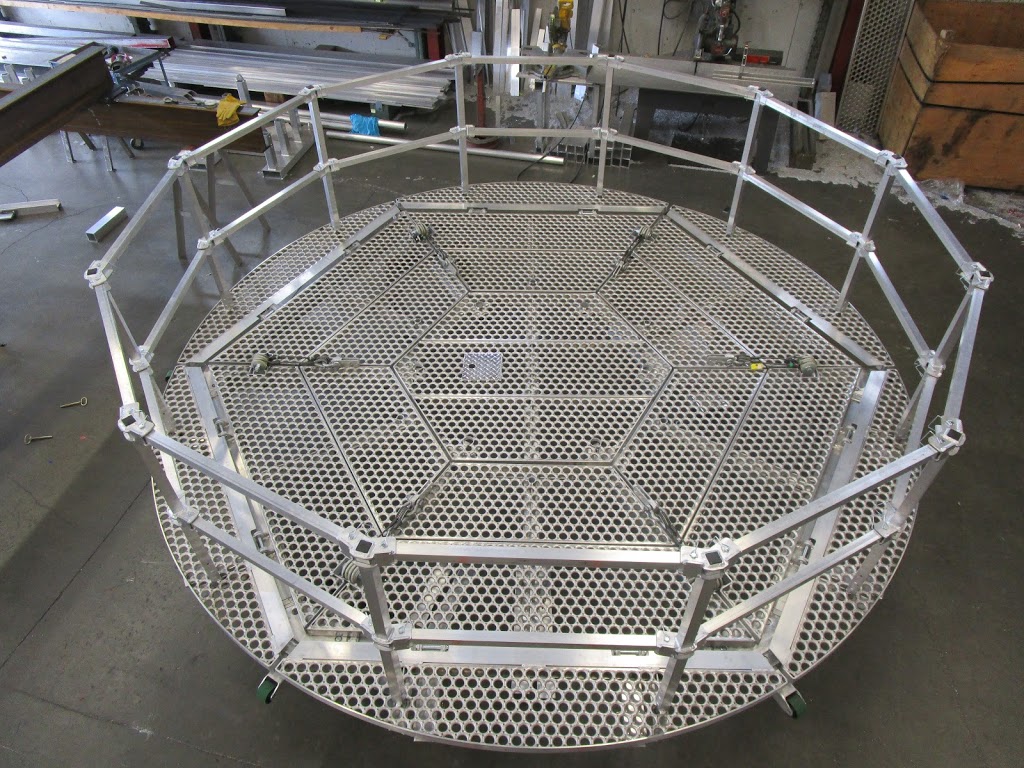

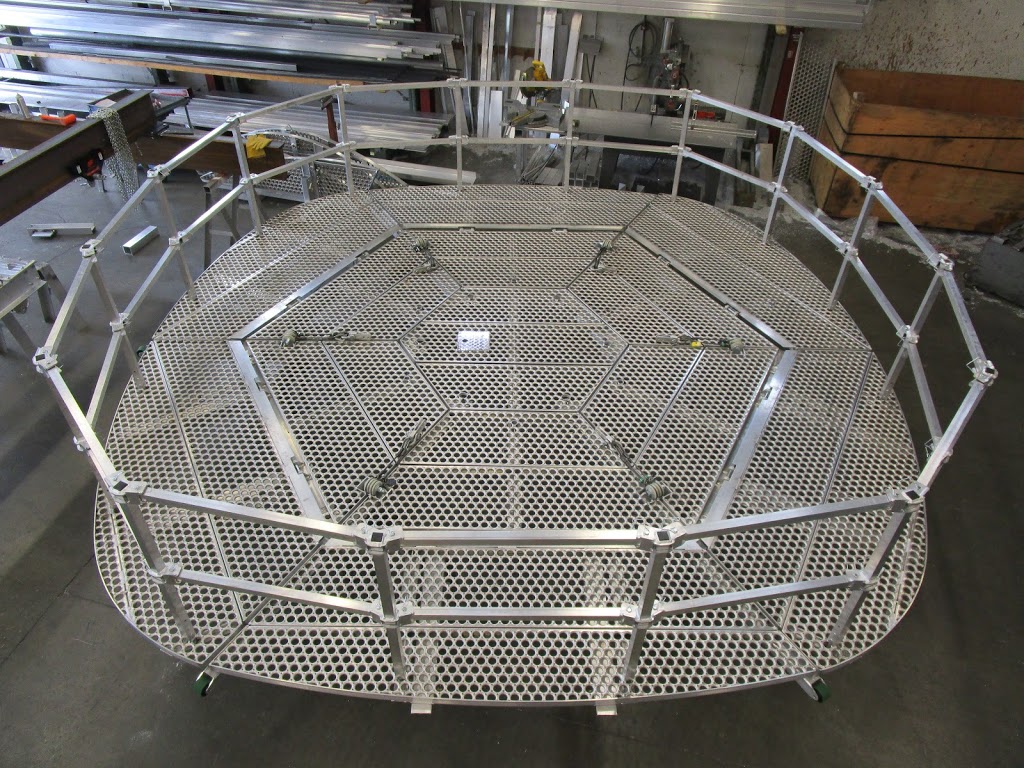

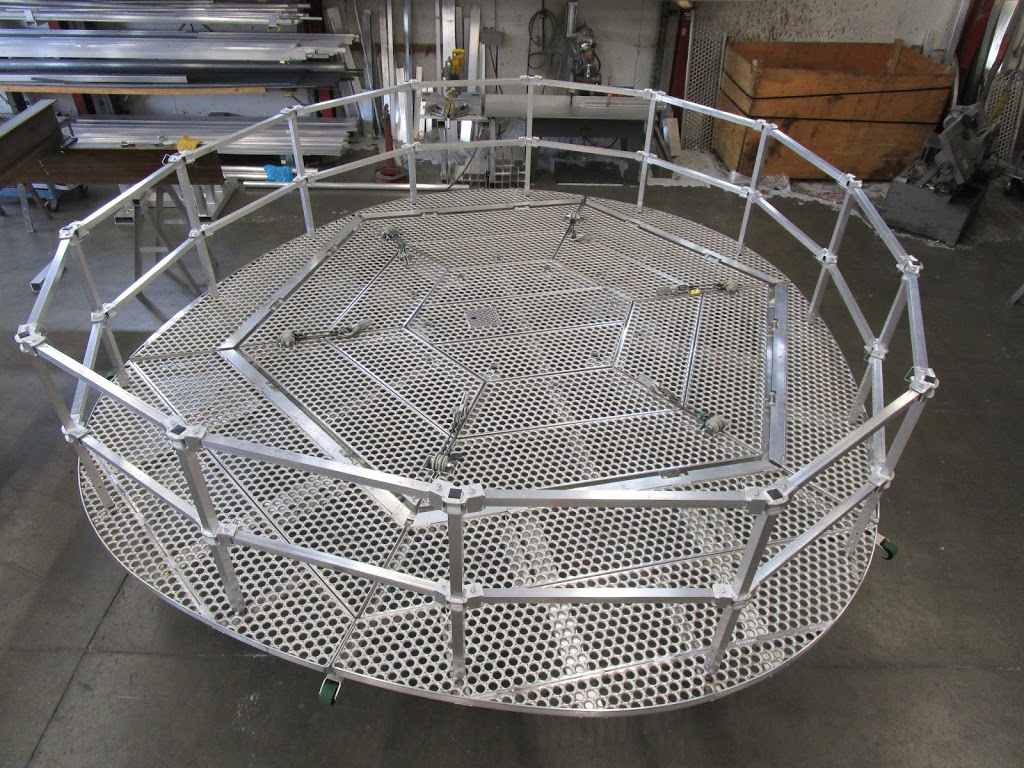

Did you know that Bricking Solutions builds platforms for Isamelt Furnaces? Here is our recent order to Kansanshi Mining which includes a custom Ez Lift Suspended Platform built for 3 different sizes. Suspended by a trolley that spans the length of beams enables the platform to move into a different sections of furnace.

Frame Design: 6061-T6 Aluminum. As strong as Steel but 1/3 the weight

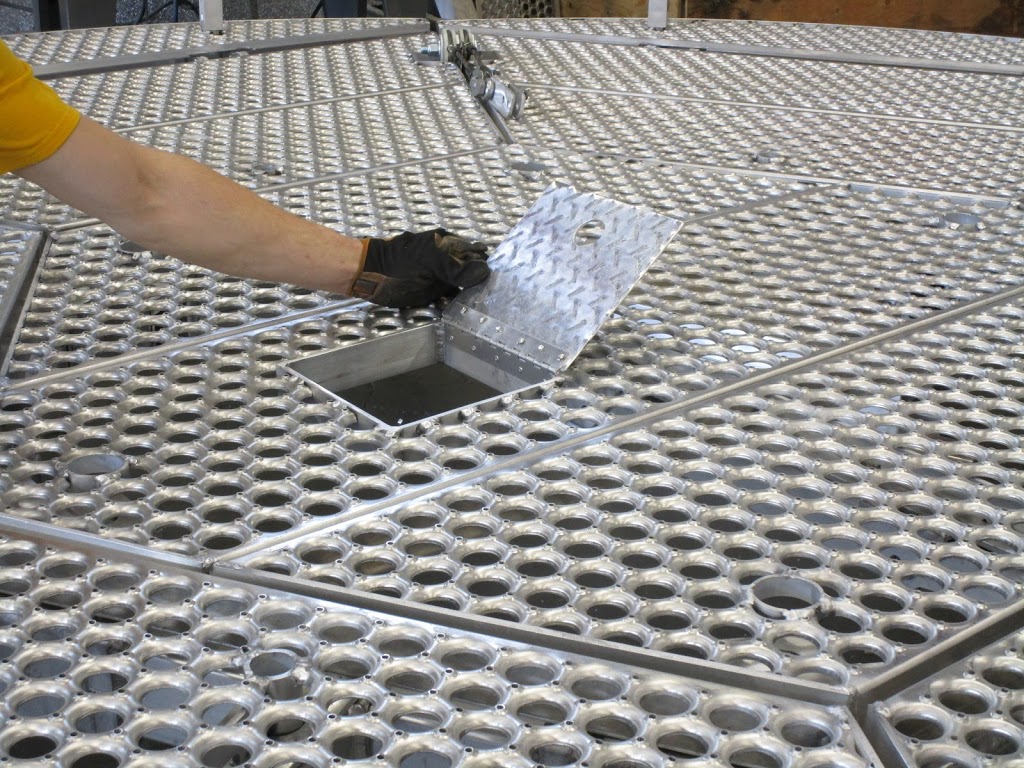

Perf-O-Grip: Planking Light-weight, perforated aluminum panels for non slip surface and less build up

Adjustability: Adjustable over 1M diameter while suspended with outer panel change-out

Stability: Mechanical outrigger to maneuver and stabilize the platform

Suspended with 6 wire hoists: Raise and lower the assembly by manual or powered hoists. 6000 lb (680 kg) max capacity

Safety Fall Guards: Keeps workers safe while in the vessel

Safety Standards: Able to meet local standards as/if required

Overhead Trolley: Trolley spans the length of beams to be able to move the platform to a different section.

Platform Capacity:  6,000 lb (2,722 kg) Personnel and material

Platform Weight: 1,000 lb – 2,500 lb (450 kg – 1,100 kg)

Outrigger Movement: Extend in either direction up to 40 in (1M) to stabilize on outer wall or inner structure

Vertical Movement: Raise / Lower Speed: 35 / Min (11m / min) with SC series electric hoists

Component Details: Each component is 40 lb (18 kg) or less and can t through a 22 in (560 mm) access hole

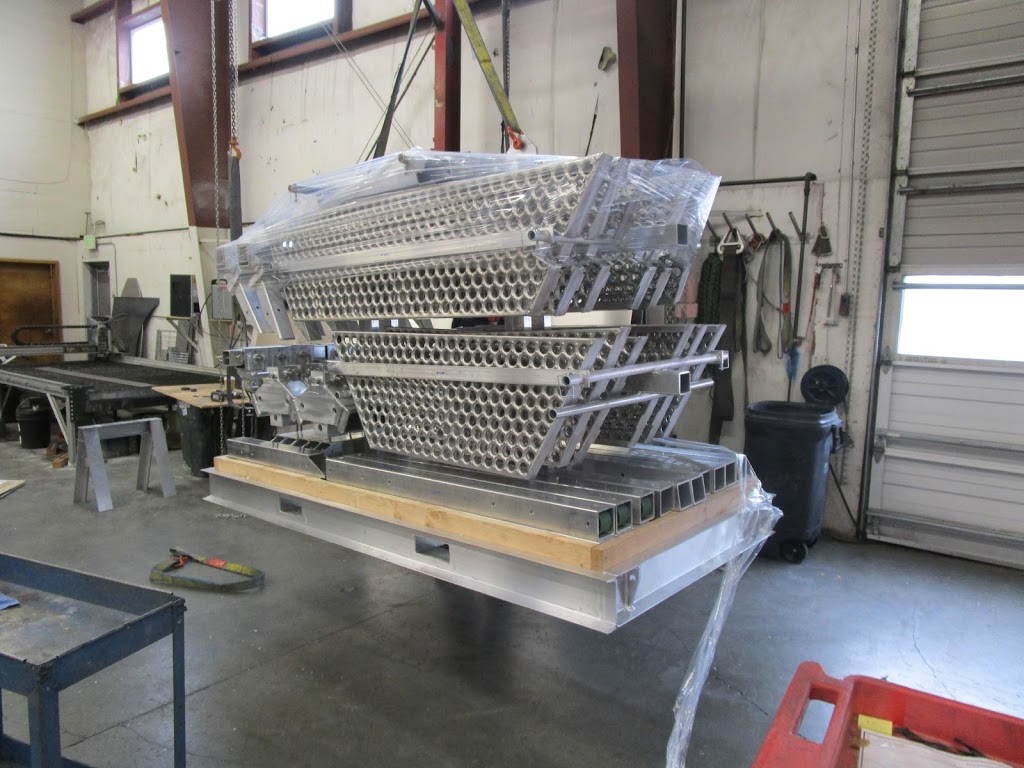

Modular Design: Comes on a custom pallet for storage or can be lifted by a crane


Contact us and visit our website for more details and get a quote today!
