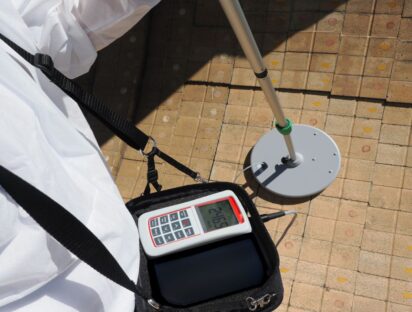

BrickCheck measures and immediately displays the thickness of refractory brick and concrete for industrial ovens, kilns and furnaces as well as unreinforced refractory concrete. The instrument allows operations to measure the thickness after drilling one hole through the refractory material for calibration. This product is faster and less destructive than drill core methods, which can require up to 200 drill holes, and accurate within 5 millimeters (0.1 inches). Operators can transfer data from the device via USB or Bluetooth connection, making transfers easy.

BrickCheck includes a control unit, measuring probe, connecting cable, anti-dust cover, carrying case and instruction manual.

Measurements & Specifications:

  • Control unit: 153 millimeters (6 inches) by 89 millimeters (3.5 inches) by 36 millimeters (1.4 inches)
  • Probe: diameter of 335 millimeters (13.2 inches) by 40 millimeters (1.6 inches)
  • Measurement Range: up to 300 millimeters (11.8 inches)
  • Protective Coating: up to 100 degrees Celsius (212 degrees Fahrenheit)
  • Battery Power: Three AA (LR05) batteries for up to 150 hours
