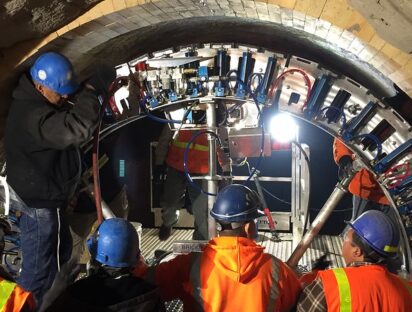

This bricking machine is designed for the installation of refractory in torpedo ladles for the steel industry. It replaces old fashion wood forms and wedges and greatly reduces set-up and installation time. The machine is designed and fabricated out of 6061-T6 aircraft aluminum with custom Aluminum Perf-O-Grip Planking and a 2,722 kg (6,000 kg) net capacity aluminum frame with rails to support the trolley. Custom-made flex arch with flexible hinge connections to allow arch wings to adjust toward and away from kiln wall Arch stabilizer post to adjust the proper distance of arch from the shell.
