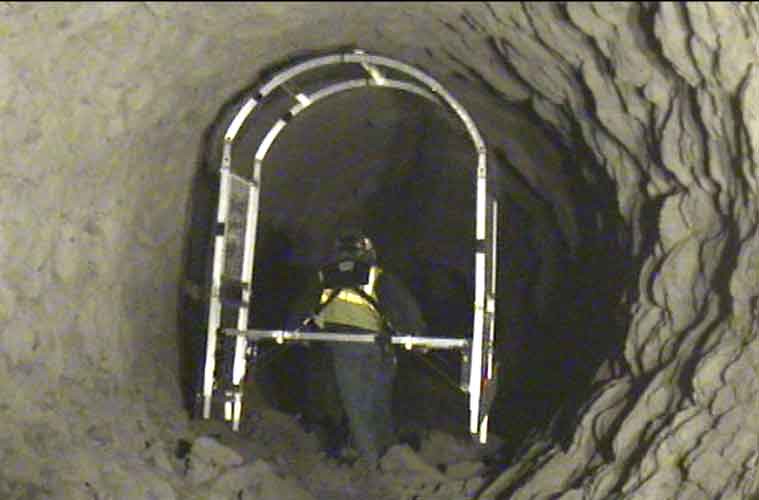

Our NEW Universal Safety Cage has been designed to be lighter and safer than previous models. With the new design, the cumbersome weight is no longer a problem and one cage is suitable for kiln sizes ranging from 4M up to 6M. The Safety Inspection Cage is designed to withstand a solid impact of 114 kg from a height 2438mm. The cage, being half the weight of the traditional style, is easily carried by two plant personnel.

  • Structural Components 6061-T6 Aluminum
  • Stainless Steel Dralo mesh safety net
  • Impact Rating 114 kg (250 lb) from 2438mm (96 in)
  • Total Weight 72 kg (158 lb)
  • ANSI, MSHA, CE and CSA compliant
Refractory Kiln Safety Cage

Safety Inspection Cages
