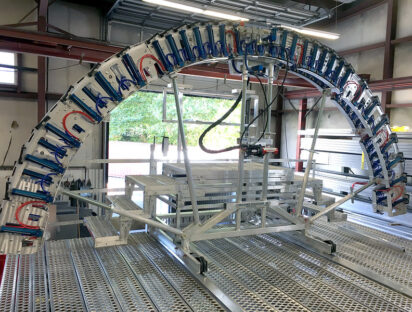

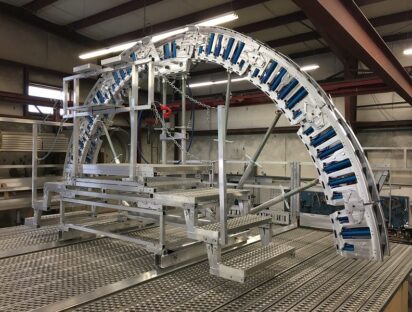

The EZ Flexx50 features a flexible arch that allows for easy adjustment inside the kiln for either minor kiln distortion, or to accommodate conical sections or ovality. Our standard Bricking Machine comes in any kiln size or 2M range from 4m and up, or can be custom made to your plant’s needs. With a wide variety of additional features for added efficiency, not only is it the safest bricking machine in the industry, it is also the best. Speed up your refractory brick kiln installation today.

  • Frames and structural components manufactured from 6061-T6 aircraft grade aluminum
  • Symmetrical part design with pin connections for fast and easy assembly
  • Standard 4,000 kg (8,800 lb) load capacity and 4.3M (14’) work platform. Allows for 2 pallets of bricks (1,540 kg) plus men and equipment. Highest load capacity in the industry
  • Optional 6,000 kg (13,200 lb) load capacity and 5.2M (17′) work platform
  • Simple jack screws allow for easy adjustment of distance between arch and shell

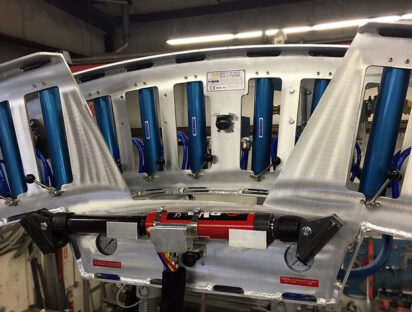

  • Ergonomic Cut-Away Keying Section, exclusive to Bricking Solutions, gives the Key Mason easy access to down-kiln arch giving a clear view for critical key brick installation
  • Engineered cut-outs incorporated into arch panels for the lightest arch in the industry
