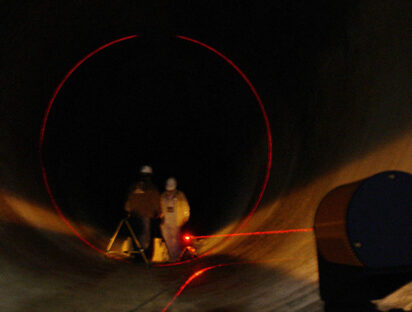

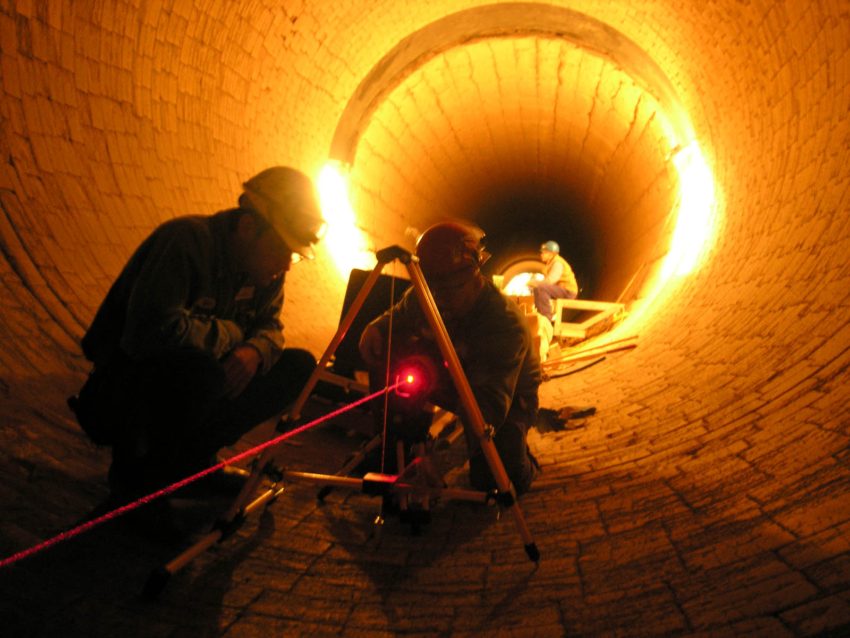

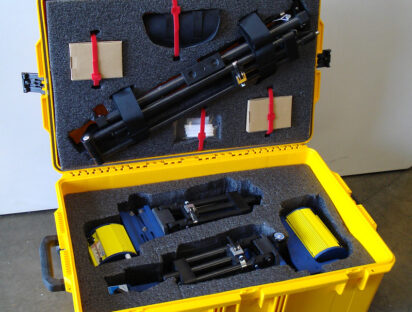

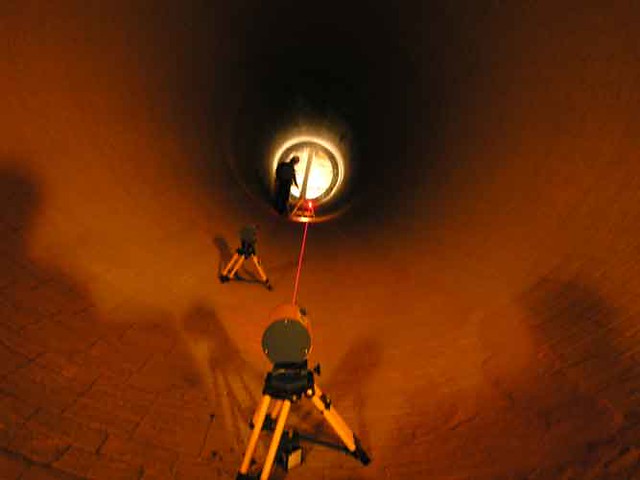

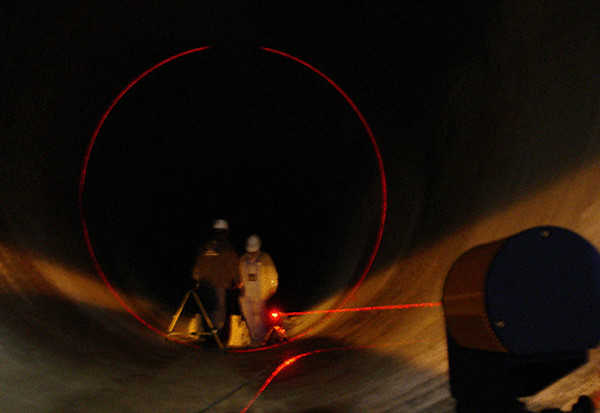

The “Radialign” laser alignment device ensures refractory is installed perpendicular to the axis of the kiln. The use of the Radialign prevents errors from being made due to manual measurement from distorted or worn away weld seams. This in turn means longer refractory life due to less mechanical stress. Our customers were becoming increasingly uncomfortable with the old methods for determining radial alignment and were frustrated with the amount of downtime of their kilns due to improperly installed brick.

It is critical to install the brick perpendicular to the axis of the kiln. If the bricks are not placed in the proper alignment, the chance for premature brick failure will greatly increase. We have documented cases of the laser being used for the first time inside of a kiln and the laser’s accuracy discovered improperly installed retaining rings; these retaining rings are the foundation for properly installed brick.
